JIC Type Lift Off Cover


RAL-JB SERIES
NEMA TYPE 4,4X

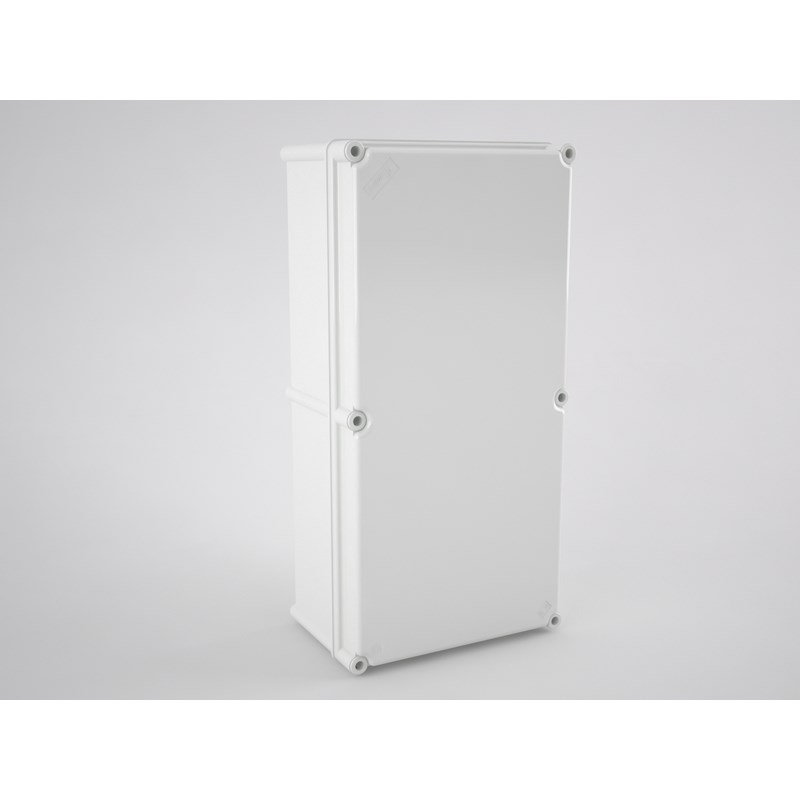

Non Metallic Fiberglas Reinforced Polyester Enclosures with Opaque Covers



Application


Ralston's RAL-JB Series is made up of modular boxes which may be coupled to each other to form groups or compact switchboards, whilst maintaining the double insulation properties and high protection level.



The RAL-JB Series is suitable for all types of mountings; even under the most severe working conditions.



Construction


The RAL-JB series is a new generation of enclosure made from 3mm thick compression moulded fiberglass reinforced polyester with opaque polycarbonate covers.



Through use of watertight polyurethane-foam seal and double insulation, these enclosures guarantee a high degree of protection; making them suitable use indoors and outdoors.



The RAL-JB series has lift off cover providing several types of hinges as an option.



Finish


All enclosures are RAL7035 light grey. Non metallic interior mounting panels are made from RAL8011 dark brown bakelite material. Metal back panels are painted with high gloss white powder coating.



International Standards


RAL-JB Series enclosures are:


• UL & cUL 508 and UL 50 listed type 4,4X

• NOTE: RAL-JB-1813 are made to UL & CSA specifications
• CE
IEC 529 - IP66

Part Number Height Width Depth Weight
RAL-JB-1313 135 mm 135 mm 129 mm 0.35 kgs
RAL-JB-1813 180 mm 135 mm 129 mm 0.44 kgs
RAL-JB-1818 180 mm 180 mm 129 mm 0.5 kgs
RAL-JB-2713 270 mm 135 mm 129 mm 0.58 kgs
RAL-JB-2718L 270 mm 180 mm 141 mm 1.18 kgs
RAL-JB-2718 270 mm 180 mm 171 mm 1.27 kgs
RAL-JB-2727 270 mm 270 mm 171 mm 1.64 kgs
RAL-JB-3618 360 mm 180 mm 171 mm 1.31 kgs
RAL-JB-3627 360 mm 270 mm 171 mm 1.98 kgs
RAL-JB-3627H 360 mm 270 mm 201 mm 2.03 kgs
RAL-JB-3636 360 mm 360 mm 171 mm 2.42 kgs
RAL-JB-3636H 360 mm 360 mm 201 mm 2.56 kgs
RAL-JB-5427 540 mm 270 mm 171 mm 2.67 kgs
RAL-JB-5427H 540 mm 270 mm 201 mm 2.96 kgs
RAL-JB-5436 540 mm 360 mm 171 mm 3.62 kgs
RAL-JB-5436H 540 mm 360 mm 201 mm 3.75 kgs
RAL-JB-5454 540 mm 540 mm 171 mm 5.21 kgs
RAL-JB-5454H 540 mm 540 mm 201 mm 5.44 kgs
RAL-JB-7236H 720 mm 360 mm 201 mm 4.15 kgs
RAL-JB-7254H 720 mm 540 mm 201 mm 7.29 kgs
