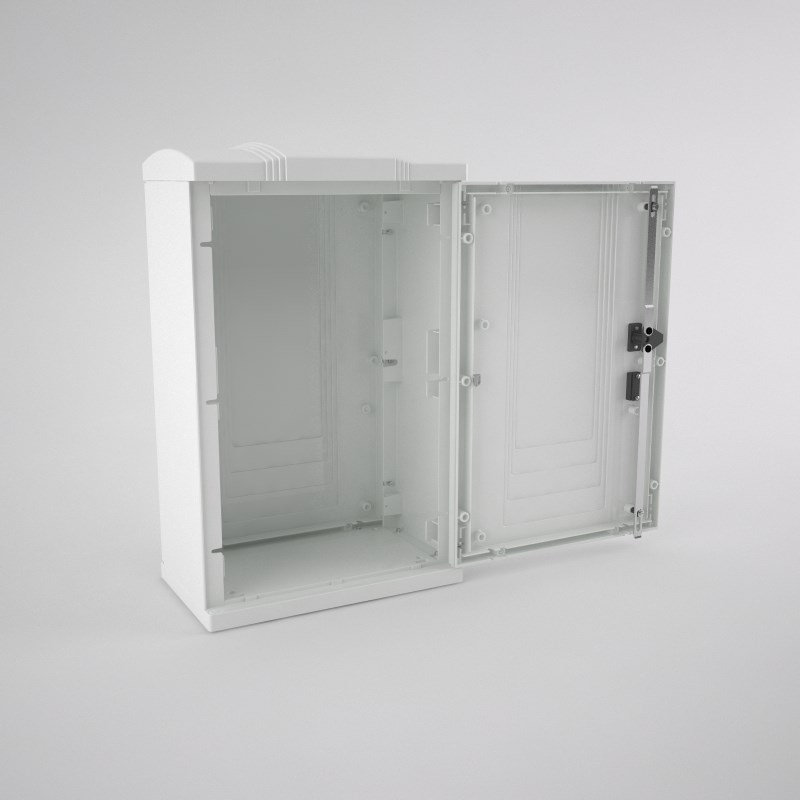

Fiberglass-Reinforced Polyester Enclosure


RAL Series
NEMA TYPE 4X, 4

APPLICATION



Ralston's RAL series enclosures are designed to provide protection indoors and outdoors against dust, dirt, oil, and water for items such as: electronic and electrical controls and pneumatic components. The RAL is well suited for corrosive environments.



CONSTRUCTION



All RAL enclosures are made of fiberglass-reinforced polyester. They are exceptionally durable, corrosion resistant, can withstand abuse and exposure to chemicals, water and extreme conditions. The cover is sealed with a polyurethane gasket. Interior mounting plates are available as an option.



FINISH



This enclosure is RAL7035 light grey. Optional interior mounting plates are available in polyester or galvanized steel.



STANDARDS



The RAL is built to the requirements of NEMA type 4X for industrial use. Water-tight and corrosion resistance. The RAL enclosure is IP-55 rated.





Part Number Height Width Depth Weight
RAL-55 500 mm 500 mm 300 mm 14 kgs
RAL-57 500 mm 750 mm 300 mm 18 kgs
RAL-75 750 mm 500 mm 300 mm 18 kgs
RAL-77 750 mm 750 mm 300 mm 23 kgs
RAL-105 1000 mm 500 mm 300 mm 20 kgs
RAL-107 1000 mm 750 mm 300 mm 28 kgs
