Application
Ralston's NM3L series enclosures are designed to provide protection indoors and outdoors, against dust, dirt, oil, and water for items such as electronic and electrical controls and pneumatic componets. The NM3L is well suited for corrosive environments.

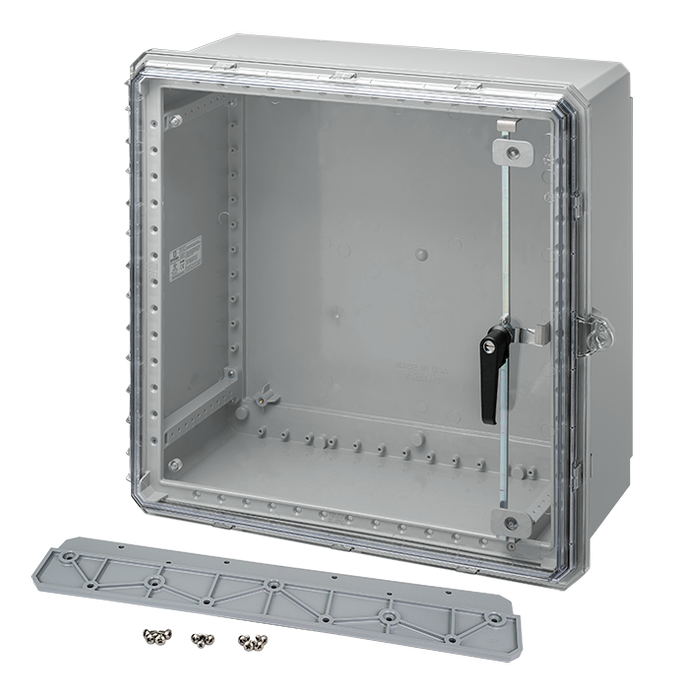

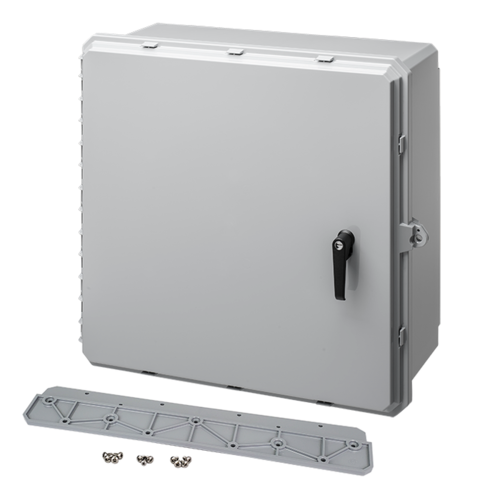

Construction
All NM3L enclosures are made from injection molded polycarbonate material. Covers have a continuous stainless hinge and are secured closed with a 3-point locking mechanism. The cover is sealed with a polyurethane gasket. The NM3L is design molded to accept DIN rails. All enclosures come complete with wall mounting brackets and are pad lockable. Metal interior mounting plates are available as an option.
Finish
The NM3L is high gloss light grey. Optional interior mounting plates are available in bare aluminum or steel painted with high gloss white powder paint.
Standards
The NM3L is built to the requirements of NEMA type 4X for industrial use water-tight and corrosion resistance.
The NM3L is UL and cUL approved for USA and Canada.
| Part Number | Height | Width | Depth | Weight |
|---|---|---|---|---|
| NM3L-201608-C | 20 in | 16 in | 8 in | 18 lbs |
| NM3L-242410-C | 24 in | 24 in | 10 in | 35 lbs |
