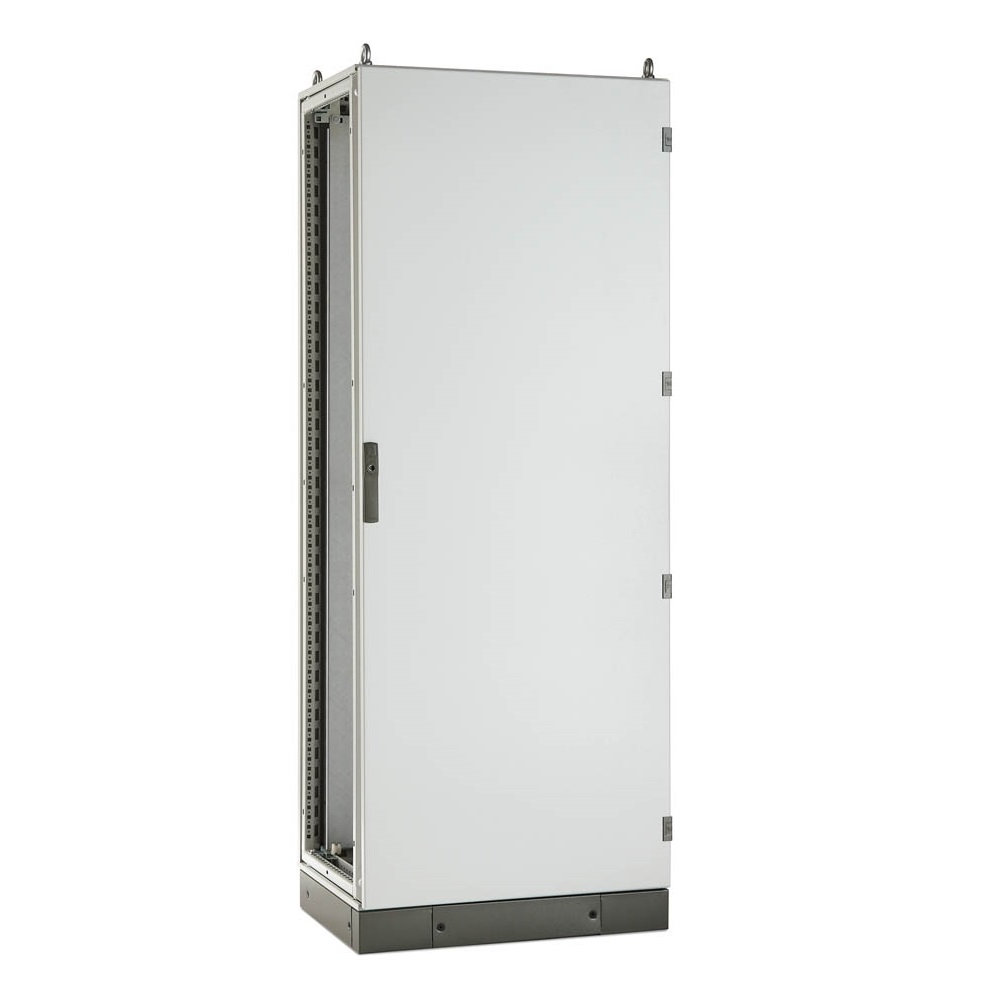

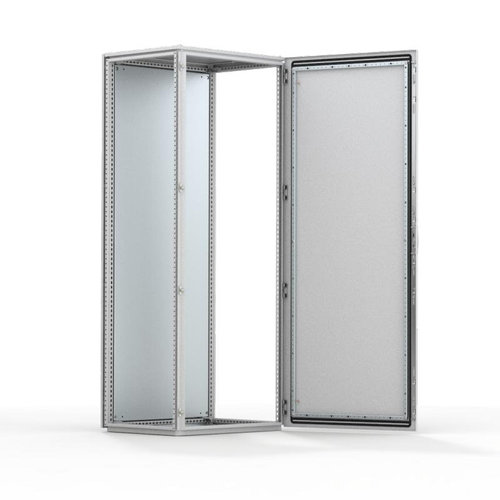

Floor Standing Single Door


EMS SERIES
NEMA Type 12,13

Application



Ralston’s EMS Series modular enclosures are designed to provide protection against dust, dirt and oil for items such as: electronic and electrical controls, instrumentation systems, pneumatic, hydraulic, machine controls as well as networking and telecommunications applications.



Ralston modular enclosures are ideal for use on installations that may require future updates needing the addition of more space. The EMS series is designed around an advanced frame system with an abundance of features, options and accessories; make the EMS one of the worlds most used modular enclosure.



Construction


In addition to its world-renowned frame, all EMS enclosures come complete with installed door, rear wall, roof, and bottom floor plate. The EMS is delivered on a shipping pallet with the width identical to the enclosure to allow the joining of enclosures without removal from the pallet.



The 1.5mm frame of the EMS is a seam welded reversed open profile with 25mm hole pattern according to DIN 43660 in addition to an integrated external hole pattern.



The 1.8mm steel door is easily removed by pulling the removable hinge pins. Doors are sealed with an extruded one-piece polyurethane gasket and secured closed with a 4 point locking system. The standard DIN type 3mm pin lock can be replaced with optional locking inserts or a variety of swing handles. A 20mm x 20mm tubular frame adds rigidity and is used to add door accessories.



The removable 1.5mm rear wall and optional sidewalls are held secure with M6 torx screws and are sealed with an extruded one-piece polyurethane gasket. Rear and side walls can be replaced with optional doors. The removable roof and 3 piece bottom plates are also made from 1.5mm steel. Bottom plates are designed for easy cable access and include cable entry foam for a complete seal.



The depth adjustable 2mm galvanized interior mounting panel comes complete with ease-of-moving slide wheels.



Finish


All enclosures are phosphatized and finished inside and out with RAL 7035 light grey polyester powder coating with a textured finish.



Standards


EMS enclosures are built to the requirements of NEMA type 12, and IP55 specifications for use with industrial control equipment in ordinary locations.



EMS enclosures are CE, and UL approved.



Special Orders


Custom units made from stainless steel or with special finishes, sizes or punching can be supplied on order.

Part Number Height Width Depth Weight
EMS-14065 1400 mm 600 mm 500 mm 73 kgs
EMS-14085 1400 mm 800 mm 500 mm 97 kgs
EMS-16065 1600 mm 600 mm 500 mm 81 kgs
EMS-16085 1600 mm 800 mm 500 mm 106 kgs
EMS-18064 1800 mm 600 mm 400 mm 86 kgs
EMS-18065 1800 mm 600 mm 500 mm 89 kgs
EMS-18066 1800 mm 600 mm 600 mm 92 kgs
EMS-18084 1800 mm 800 mm 400 mm 112 kgs
EMS-18085 1800 mm 800 mm 500 mm 115 kgs
EMS-18086 1800 mm 800 mm 600 mm 118 kgs
EMS-18104 1800 mm 1000 mm 400 mm 130 kgs
EMS-18105 1800 mm 1000 mm 500 mm 136 kgs
EMS-18106 1800 mm 1000 mm 600 mm 142 kgs
EMS-20064 2000 mm 600 mm 400 mm 94 kgs
EMS-20065 2000 mm 600 mm 500 mm 97 kgs
EMS-20066 2000 mm 600 mm 600 mm 100 kgs
EMS-20068 2000 mm 600 mm 800 mm 106 kgs
EMS-20084 2000 mm 800 mm 400 mm 121 kgs
EMS-20085 2000 mm 800 mm 500 mm 124 kgs
EMS-20086 2000 mm 800 mm 600 mm 127 kgs
EMS-20088 2000 mm 800 mm 800 mm 133 kgs
EMS-20104 2000 mm 1000 mm 400 mm 141 kgs
EMS-20105 2000 mm 1000 mm 500 mm 147 kgs
EMS-20106 2000 mm 1000 mm 600 mm 153 kgs
EMS-20108 2000 mm 1000 mm 800 mm 165 kgs
EMS-22066 2200 mm 600 mm 600 mm 108 kgs
EMS-22068 2200 mm 600 mm 800 mm 114 kgs
EMS-22086 2200 mm 800 mm 600 mm 137 kgs
EMS-22088 2200 mm 800 mm 800 mm 143 kgs
