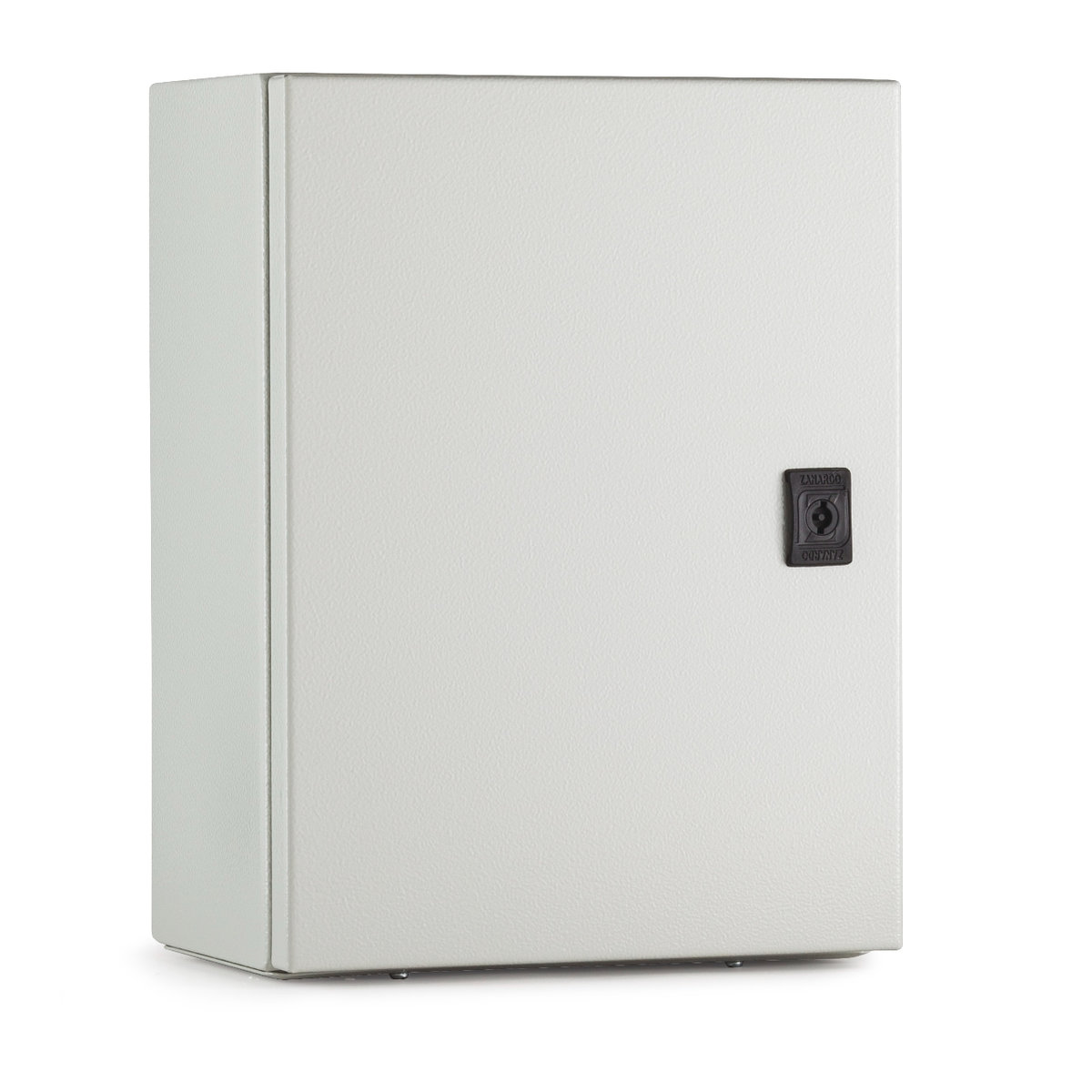

Wall Mount Economy Enclosure


EWS Series
NEMA Type 12,13,4

Water and Dust Tight Enclosure



Application


Ralston’s EWS series enclosures are designed to provide protection indoors and outdoors, against dust, dirt, oil, and water for items such as: electronic and electrical controls, instrumentation systems, pneumatic, hydraulic and machine controls.



Construction


All EWS enclosures are made from 1.5mm mild steel. All seams are continuously welded and ground to a smooth finish. Each enclosure comes complete with grounding studs, gland plate, and a removable 2mm galvanized back panel mounted on M8 weld nuts.





The 120° opening door is easily removed by pulling the removable hinge pins from the hidden hinges to allow right or left hand opening. The door is sealed with an extruded one-piece polyurethane gasket and is secured closed with 3mm DIN type quarter turn latches.

Finish

The EWS is phosphatized and finished inside and out with RAL 7035 light grey polyester powder coating with a textured finish.



Standards


The EWS is built to the requirements of IP66, NEMA Type 12 for industrial use, and type 4, for water tight resistance.



The EWS is CE, UL, and cUL for Canada



Special Orders


Custom units with special finishes, sizes, and punching can be supplied on order.







Part Number Height Width Depth Weight
EWS-0202015 200 mm 200 mm 150 mm 3 kgs
EWS-0252015 250 mm 200 mm 150 mm 4 kgs
EWS-0252515 250 mm 250 mm 150 mm 5 kgs
EWS-0302015 300 mm 200 mm 150 mm 5 kgs
EWS-0302515 300 mm 250 mm 150 mm 6 kgs
EWS-0302520 300 mm 250 mm 200 mm 7 kgs
EWS-0303015 300 mm 300 mm 150 mm 7 kgs
EWS-0303020 300 mm 300 mm 200 mm 7 kgs
EWS-0352515 350 mm 250 mm 150 mm 7 kgs
EWS-0352520 350 mm 250 mm 200 mm 8 kgs
EWS-0403015 400 mm 300 mm 150 mm 10 kgs
EWS-0403020 400 mm 300 mm 200 mm 10 kgs
EWS-0404020 400 mm 400 mm 200 mm 10 kgs
EWS-0405020 400 mm 500 mm 200 mm 13 kgs
EWS-0503015 500 mm 300 mm 150 mm 12 kgs
EWS-0503020 500 mm 300 mm 200 mm 11 kgs
EWS-0503515 500 mm 350 mm 150 mm 12 kgs
EWS-0503520 500 mm 350 mm 200 mm 13 kgs
EWS-0504015 500 mm 400 mm 150 mm 11 kgs
EWS-0504020 500 mm 400 mm 200 mm 15 kgs
EWS-0504025 500 mm 400 mm 250 mm 16 kgs
EWS-0505020 500 mm 500 mm 200 mm 16 kgs
EWS-0505030 500 mm 500 mm 300 mm 16 kgs
EWS-0604015 600 mm 400 mm 150 mm 12 kgs
EWS-0604020 600 mm 400 mm 200 mm 17 kgs
EWS-0604025 600 mm 400 mm 250 mm 19 kgs
EWS-0605020 600 mm 500 mm 200 mm 19 kgs
EWS-0605025 600 mm 500 mm 250 mm 17 kgs
EWS-0606020 600 mm 600 mm 200 mm 24 kgs
EWS-0606025 600 mm 600 mm 250 mm 25 kgs
EWS-0606030 600 mm 600 mm 300 mm 24 kgs
EWS-0608030 600 mm 800 mm 300 mm 30 kgs
EWS-0705020 700 mm 500 mm 200 mm 23 kgs
EWS-0705025 700 mm 500 mm 250 mm 24 kgs
EWS-0805020 800 mm 500 mm 200 mm 26 kgs
EWS-0805025 800 mm 500 mm 250 mm 28 kgs
EWS-0806020 800 mm 600 mm 200 mm 29 kgs
EWS-0806025 800 mm 600 mm 250 mm 31 kgs
EWS-0806030 800 mm 600 mm 300 mm 33 kgs
EWS-0808020 800 mm 800 mm 200 mm 34 kgs
EWS-0808030 800 mm 800 mm 300 mm 38 kgs
EWS-0906020 900 mm 600 mm 200 mm 33 kgs
EWS-0906025 900 mm 600 mm 250 mm 35 kgs
EWS-0906030 900 mm 600 mm 300 mm 37 kgs
EWS-1006025 1000 mm 600 mm 250 mm 38 kgs
EWS-1006030 1000 mm 600 mm 300 mm 40 kgs
EWS-1008020 1000 mm 800 mm 200 mm 45 kgs
EWS-1008025 1000 mm 800 mm 250 mm 46 kgs
EWS-1008030 1000 mm 800 mm 300 mm 50 kgs
EWS-1008040 1000 mm 800 mm 400 mm 60 kgs
EWS-1206030 1200 mm 600 mm 300 mm 46 kgs
EWS-1208025 1200 mm 800 mm 250 mm 55 kgs
EWS-1208030 1200 mm 800 mm 300 mm 59 kgs
EWS-1208040 1200 mm 800 mm 400 mm 65 kgs
