Application

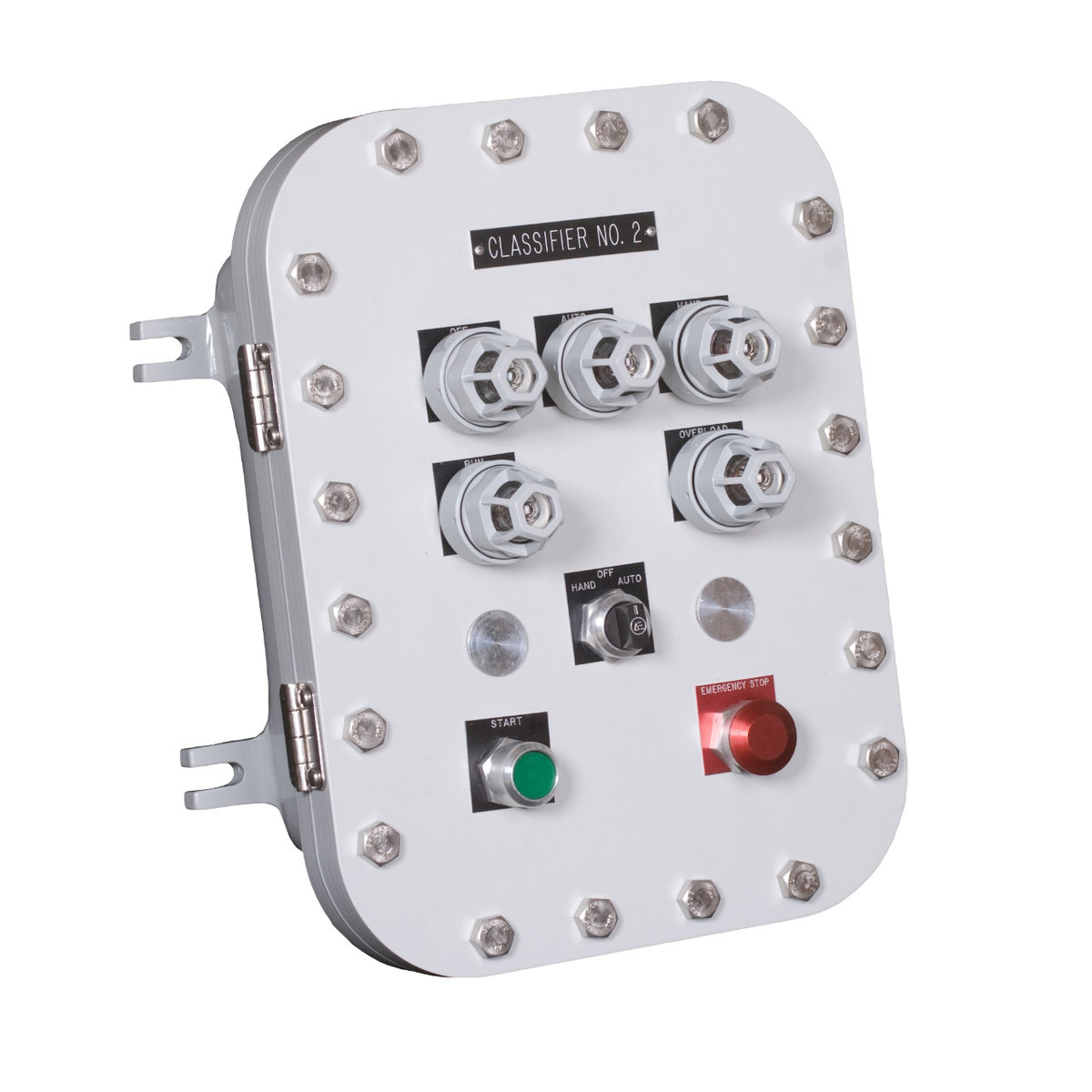

Ralston’s CXJ-FCS series enclosures are designed to provide explosion protection against hazardous gases, vapors, liquids, flammable fibers and flying or combustible dusts. The CXJ-FCS is designed for use in hazardous areas such as oil / petroleum refineries, waste water treatment plants, petrochemical plants, mining facilities, etc. The CXJ-FCS can be installed in both indoor and outdoor environments.
Construction:
The CXJ-FCS enclosures are made from copper-free cast aluminum. Each enclosure comes complete with cover bolts and cast mounting feet.
Finish:
The CXJ-FCS has a stainless steel shot blast or sandblast natural finish. The option of a painted finish is available upon request. Interior mounting plates are bare aluminum.
Standards:
The CXJ-FCS is built to the requirements of, NEMA type 2, 4X, 7 and 9.
The CXJ-FCS enclosure is UL, cUL (for Canada) and CSA (for Canada) certified.
The CXJ-FCS complies with:
Class I, Div 1 & 2, Groups B, C + D
Class II, Div 1& 2, Groups E, F + G
Class III
Options Available:
The CXJ-FCS can be drilled, tapped and supplied with a variety of lights and operators. Also available with installation of hinges, N4 o-ring, windows and an interior mounting plate.
CXJ10104-FCS
CXJ10106-FCS
CXJ10108-FCS
CXJ10144-FCS
CXJ10146-FCS
CXJ10148-FCS
CXJ12124-FCS
CXJ12126-FCS
CXJ12126LW-FCS
CXJ12184-FCS
CXJ12186-FCS
CXJ12188-FCS
CXJ12205-FCS
CXJ12244-FCS
CXJ12246-FCS
CXJ12248-FCS
CXJ12306-FCS
CXJ12364-FCS
CXJ12366-FCS
CXJ12368-FCS
CXJ12468-FCS
CXJ14146-FCS
CXJ14148-FCS
CXJ14286-FCS
CXJ16164-FCS
CXJ16166-FCS
CXJ16168-FCS
CXJ16246-FCS
CXJ16248-FCS
CXJ18186-FCS
CXJ18188-FCS
CXJ182410-FCS
CXJ18246-FCS
CXJ18248-FCS
CXJ18308-FCS
CXJ183610-FCS
CXJ18368-FCS
CXJ242410-FCS
CXJ24248-FCS
CXJ24308-FCS
CXJ243610-FCS
CXJ24368-FCS
CXJ4164-FCS
CXJ6104-FCS
CXJ6115-FCS
CXJ6124-FCS
CXJ6126-FCS
CXJ6135-FCS
CXJ6164-FCS
CXJ6186-FCS
CXJ664-FCS
CXJ684-FCS
CXJ685-FCS
CXJ686-FCS
CXJ8104-FCS
CXJ8106-FCS
CXJ8108-FCS
CXJ8124-FCS
CXJ8126-FCS
CXJ8128-FCS
CXJ884-FCS
CXJ886-FCS
CXJ888-FCS
CXJ9115-FCS
CXJ-FCS General PDF
